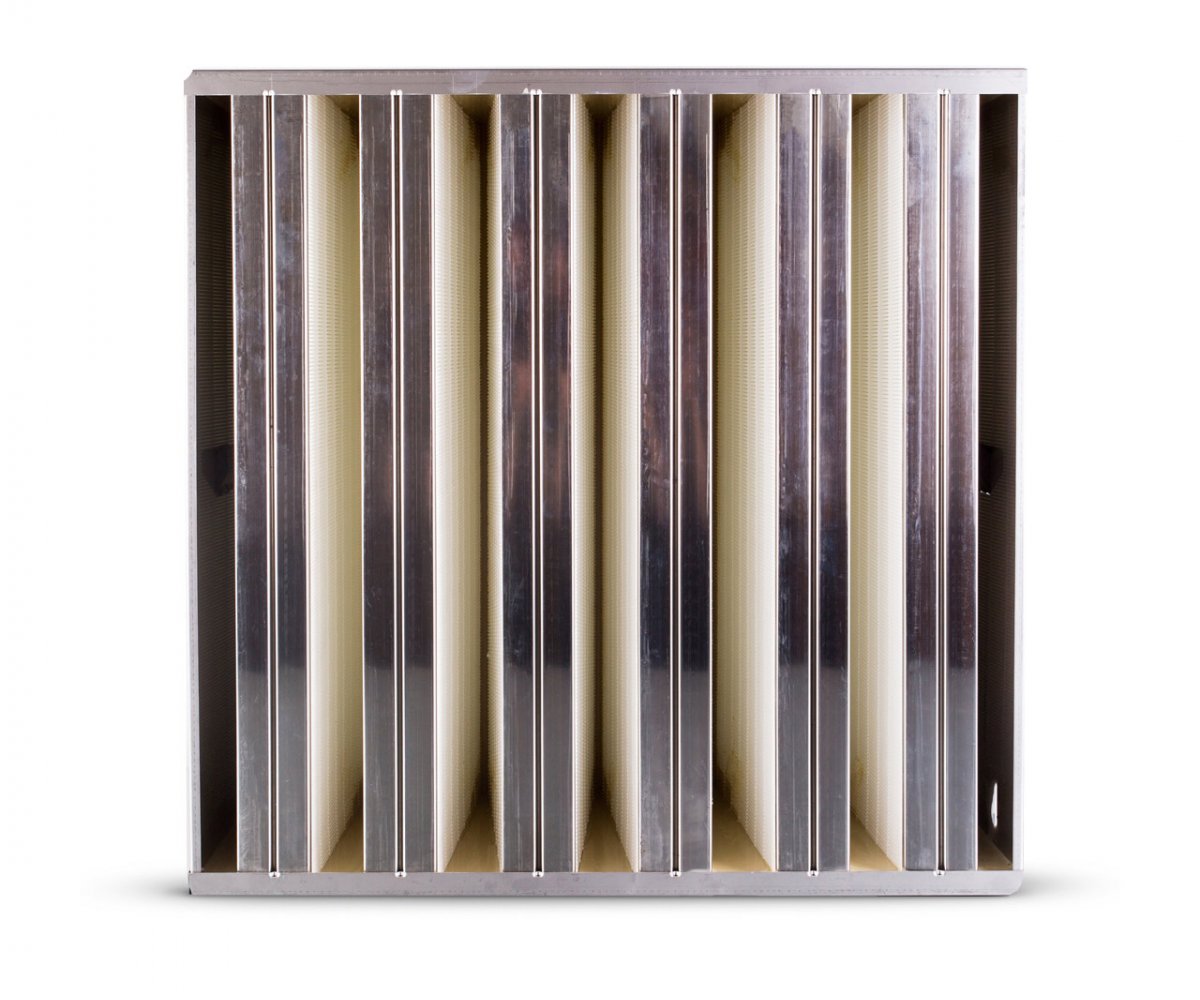

High flow filter "W"
EN ISO 29463
(ČSN EN 1822)
(ČSN EN 1822)
Frames:
stainless sheet, Zn sheet, plastic
Operating temperature:
80°C (120°C)
The final pressure loss:
600 Pa
Parameters
These filters are included in classes E10, E11, E12, H13 and H14. They have an excellent value of separation in the area of fine particles and are designed for large volumes of air. In existing installations, the large filtration area of media provides slower increase of pressure drop, which extends the life of the filter and reduces energy costs.
Use
They are used in the field of fine particles, thanks to the excellent value of separation. They are intended for large volumes of air.
Sizes
| Sizes | Filtration area (m2) | Air flow (m3/h) |
|---|---|---|
| 305x610x292 | 18 | 1700 |
| 610x610x292 | 36 | 3400 |
| 290x595x292 | 17,5 | 1600 |
| 595x595x292 | 35 | 3200 |
